TA-10 Precision Strain Gauge Signal Isolation Amplifier

Categorisation: Web tension amplifier

>> Messages

>> Contact

Detail

Product Features:

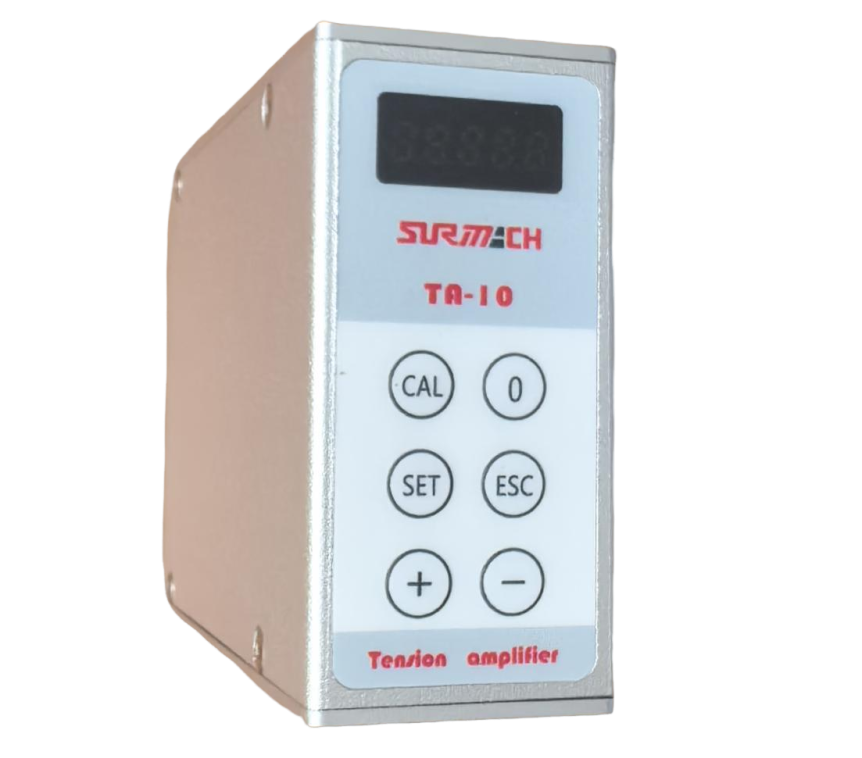

 TA-10P is a general-purpose signal amplifier compatible with tension sensors from various manufacturers.
 One-button quick calibration and zeroing eliminate drift caused by potentiometer adjustments over time and temperature changes.
 Tension signals can be converted into various standard outputs for user selection.
 The thin-film keypad interface displays the measured tension value in real time.
 Features overvoltage, overcurrent, and short-circuit protection.
 Wide voltage supply of 10-30V, with a precision 10V excitation voltage source output for sensor power supply.
 Suitable for sensors with sensitivity of 1mV/V-4mV/V.
 Low noise, high precision.
 Interfaces have surge protection, power and signal electrical isolation, and good anti-interference performance.
 Modular design for easy disassembly, small size, light weight, standard 35mm DIN rail mounting, simple and easy to use.

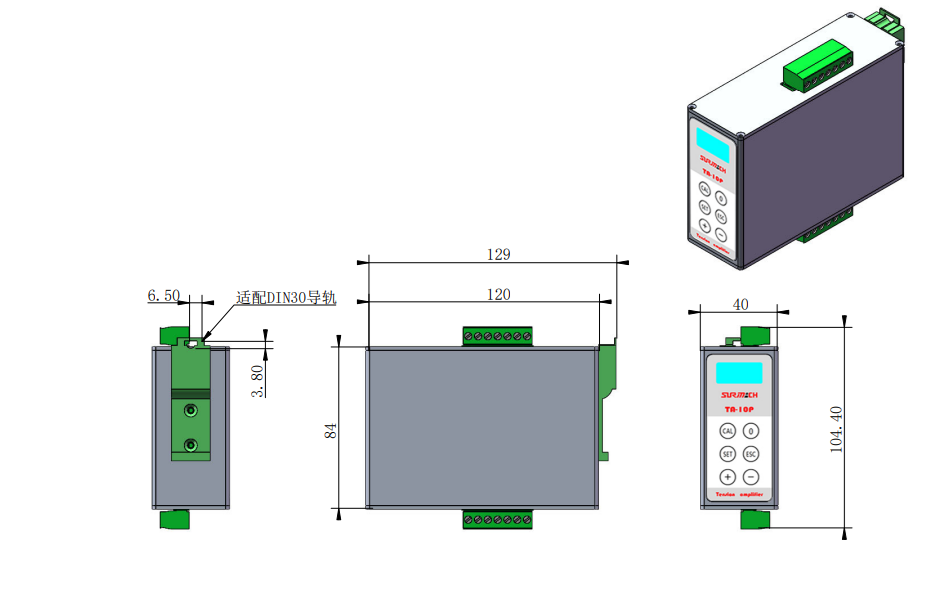

Dimensions and Installation Diagram

Product Parameters :

Supply Voltage	24VDC±30%	Sensor Signal Input	0mV-40mV
Power Supply Power	5W	Sensor Excitation Voltage	10VDC±1%, Current <80mA
Tension Output	0V-10V voltage output. Maximum output capacity 5mA, load resistance >2kΩ. 4mA-20mA current output. Loop resistance 500Ω.	Accuracy	Typical 0.03% FS, Maximum 0.1%FS
Sensor Resistance	350Ω-1000Ω	Ambient Temperature	0 ° C to 50 ° C
Calibration Range	30-100%	Ambient Humidity	Maximum Relative Humidity 95% (non-condensing)

Note:

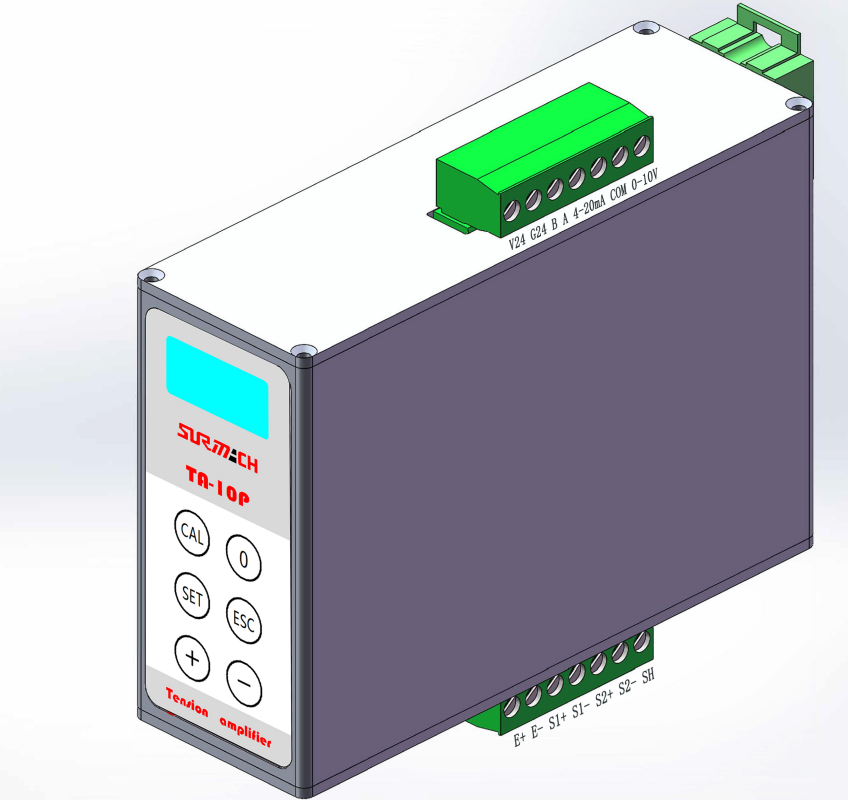

1) When connecting one full-bridge sensor, connect the positive pole of the sensor excitation power supply to E+, the negative pole to E-, and the shield to SH. The signals are connected to S1+, S1-. Pay attention to the polarity of the signal.

2) When connecting two full-bridge sensors, connect the positive poles of the sensor excitation power supply in parallel to E+, the negative poles in parallel to E-, and the shields in parallel to SH. The signals are connected to S1+, S1-, S2+, S2-. Pay attention to the polarity of the signal.

3) When connecting two half-bridge sensors, connect the positive pole of the sensor excitation power supply to E+, the negative pole to E-, and the shield to SH. The signals are connected to S1+, S1-. Pay attention to the polarity of the signal.
