LPC-6 digital screen integrated web guiding controller

Categorisation: Web guide controller

Powerful performance: The system adopts a 32-bit ARM high-performance processor. Touch screen interface: Real time display of various operation statuses, more user-friendly. Easy to use: The main interface can complete operations, fully considering the convenience of operation. Intelligent PID: Self applicable PID program design, ensuring efficient and high-precision correction. Protection circuit: With comprehensive anti-interference technology, various electromagnetic interferences can be effectively eliminated. One machine with multiple functions: supporting edge alignment, centering, CCD line following edge tracking, and double-layer material tracking functions. Fully functional: suitable for various application scenarios - edge detection, centering, line following, and following correction. With comprehensive auxiliary functions. Stable quality: The system is equipped with built-in overcurrent, overvoltage, and overload protection functions, ensuring the long-term reliable operation of the correction system.

>> Messages

>> Contact

Detail

Product Description:

Powerful performance: The system adopts a 32-bit ARM high-performance processor.

Touch screen interface: Real time display of various operation statuses, more user-friendly.

Easy to use: The main interface can complete operations, fully considering the convenience of operation.

Intelligent PID: Self applicable PID program design, ensuring efficient and high-precision correction.

Protection circuit: With comprehensive anti-interference technology, various electromagnetic interferences can be effectively eliminated.

One machine with multiple functions: supporting edge alignment, centering, CCD line following edge tracking, and double-layer material tracking functions.

Fully functional: suitable for various application scenarios - edge detection, centering, line following, and following correction. With comprehensive auxiliary functions.

Stable quality: The system is equipped with built-in overcurrent, overvoltage, and overload protection functions, ensuring the long-term reliable operation of the correction system.

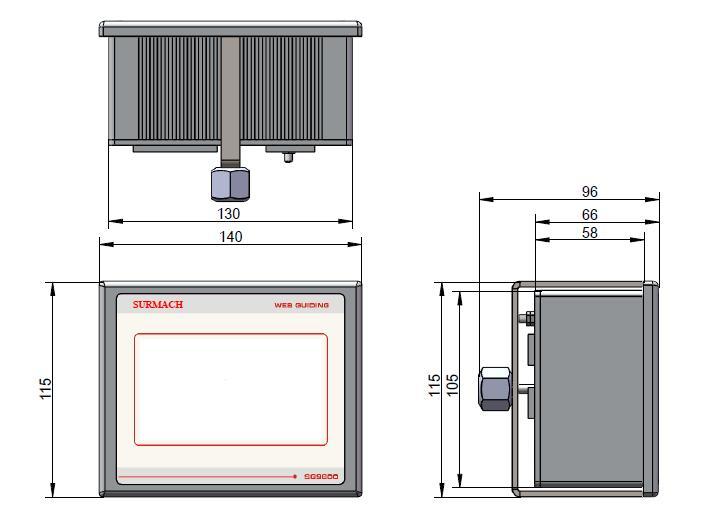

External dimension and installation diagram

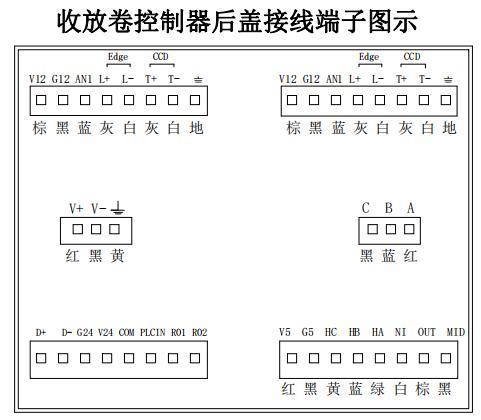

Electrical wiring diagram

Product parameters

Control accuracy	Rated power	Web guiding load	Protection level	Ambient temperature	Working voltage	Air humidity
±0.1mm	150W	<3T	IP54	-10~+60℃	24VDC	0~90%
±0.1mm	240W	5T	IP54	-10~+60℃	48VDC	0~90%
±0.1mm	450W	10T	IP54	-10~+60℃	220VAC	0~90%

Note: Above correction accuracy is an ideal state accuracy, and it is necessary to ensure good working conditions, including tension stability, guide roller balance, equipment strength, incoming material deviation, and correction parameter settings.
