T series Idler type tension sensor

Categorisation: Web tension sensor

T series sensors are equipped with self-aligning bearings, which can eliminate errors in shaft expansion and contraction, as well as coaxiality. This product is sturdy, durable, with good linearity and fast response. Clamp shaft installation, extremely convenient to use, with customizable shaft holes; There are two materials available: stainless steel and aluminum alloy. This series of products can be widely used in various light load winding equipment such as rewinding machines, slitting machines, printing machines, coating machines, and laminating machines

>> Messages

>> Contact

Detail

Product description:

This series of products can be widely used in various light load winding equipment such as rewinding machines, slitting machines, printing machines, coating machines, and laminating machines

Product features:

Good signal linearity and high output voltage;

Fast response without temperature compensation;

Standard industrial installation methods;

Clamp shaft installation is extremely convenient, and the shaft hole can be customized.

An industrial installation method with unique internal design that can compensate for errors caused by shaft expansion and contraction and coaxiality issues;

	Shafts with diameters ranging from 9.5mm to 38mm can be installed with an idler type tension sensor. This series of sensors has built-in overload protection, which can provide protection for the sensor when the bearing is damaged.

Model no	A	B	C
ST2-1	38.1	28	120
ST0-1	28.6	13	89
Model no	D	E	F
ST2-1	109	31	M16-2.0X12
ST0-1	77	28.5	M10-1.5X10

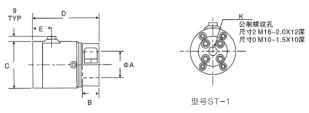

ST-1 product dimension diagram

ST-1 product model diagram

Model no	A	B	C
FT2-1	38.1	28	120
FT0-1	28.6	13	89
型号	D	E	F
FT2-1	109	31	M16-2.0X12
FT0-1	77	28.5	M10-1.5X10

FT-1 product dimension diagram

FT-1product model diagram

Product parameter

Rated Load（kg）		Ambient temperature	95R.H
Type 0	5,25,35,50,75	Scope of application	-34℃~+55℃
Type 2	38,75,125,250,500（500kg仅限F式安装）	Linear tolerance	Maximum1º
Overload coefficient	200%	Compression amount	200-380um
Input voltage	10VDC	Cable plug specifications	DIN45322 six core plug
Tension signal input	0-20mv	Repeatability error	＜+0.25％
Resistance value of strain gauges	350Ω	Nonlinear hysteresis comprehensive error	＜+0.5%
